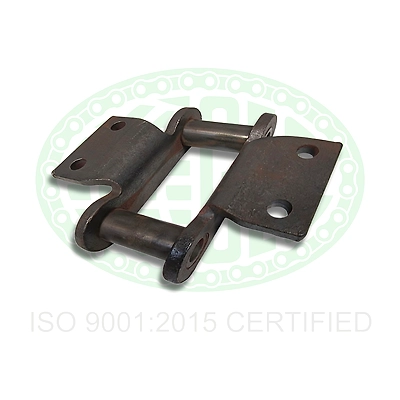

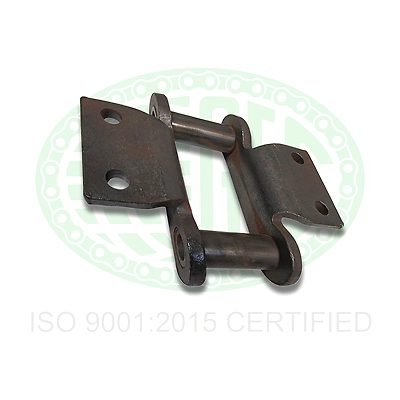

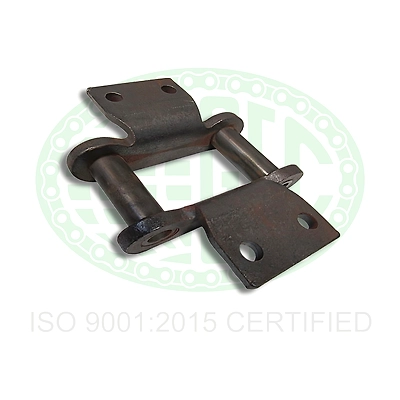

Cast Elevator Chains
-
Product is not available
Country Of Origin : India
| Chain Ref. | Pitch | UTS (LBT) | Pin Dia D | S/bar Height A | Max Gearing G | Barrel Dia R | C | E | F | Bolt Dia H | T | W | X |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 503K1 | 76.708 | 9070 | 14.224 | 35.052 | 28.702 | 27.686 | 16.002 | 42.926 | 44.450 | 33.274 | 22.352 | 25.400 | 143.002 |
| 504K2 | 103.124 | 12472 | - | 38.100 | 41.402 | 66.802 | 9.652 | 12.700 | 7.874 | 12.700 | 111.252 | 147.574 | 177.800 |
Cast Elevator Chains
