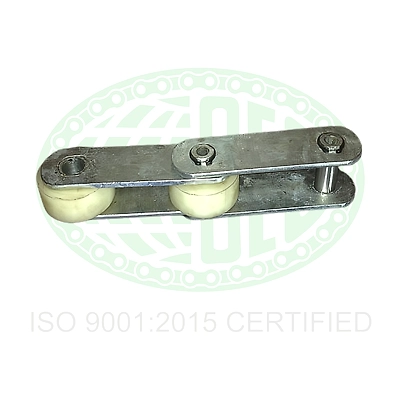

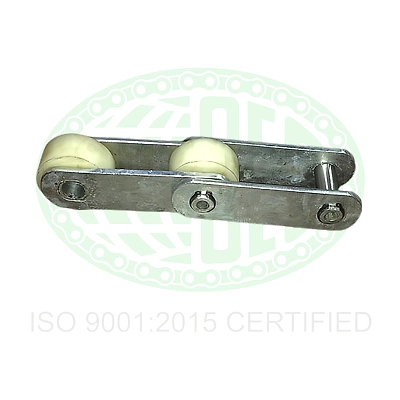

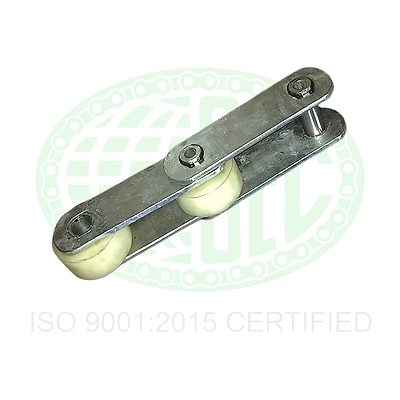

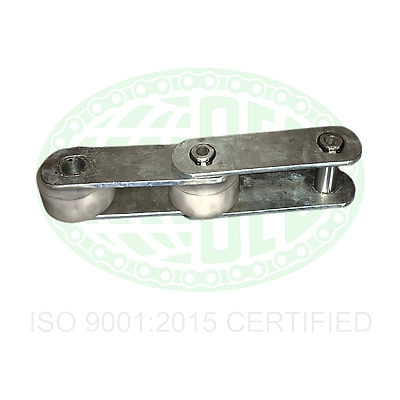

Hollow Pin Chains

Send Inquiry Download PDF

Country Of Origin : India

Chain Ref.	Pitch p	UTS (LBS)	Pin O/D D	Pin E	Roller Dia. R	S/Bar Height A	Dist. B/W G	Thk. T
HP-5127	101.600	5442	19.050	13.208	47.752	38.100	19.050	5.080
HP-S4P18	101.600	8163	19.050	13.208	47.752	38.100	19.050	5.080
HP-5130	101.600	16327	26.924	20.066	66.675	50.800	25.400	6.350
HP-5325	152.400	13605	26.924	20.066	66.675	50.800	25.400	6.350
HP-5328	152.400	15873	26.924	20.066	66.675	50.800	25.400	6.350
HP-S6P30	152.400	17234	26.924	20.066	66.675	50.800	25.400	7.112
HP-5327	152.400	22676	26.924	20.066	66.675	50.800	25.400	8.001
HP-4161	101.600	6803	19.050	13.208	47.625	38.100	19.050	4.50mm
HP-4162	101.600	11791	26.898	20.066	66.675	50.800	25.400	6.40mm
HP-6242	152.400	11791	26.898	20.066	66.675	50.800	25.400	6.40mm
HP-6243	152.400	19955	31.750	23.114	88.900	60.960	38.100	9.00mm
HP-4161	101.600	7710	19.050	13.208	47.625	38.100	19.050	4.50mm
HP-4162	101.600	16327	26.898	20.066	66.675	50.800	25.400	6.40mm
HP-6242	152.400	16327	26.898	20.066	66.675	50.800	25.400	6.40mm
HP-4161	101.600	10884	19.050	13.208	47.625	38.100	19.050	4.50mm
HP-6242	152.400	22676	20.066	20.066	66.675	50.800	25.400	6.40mm
